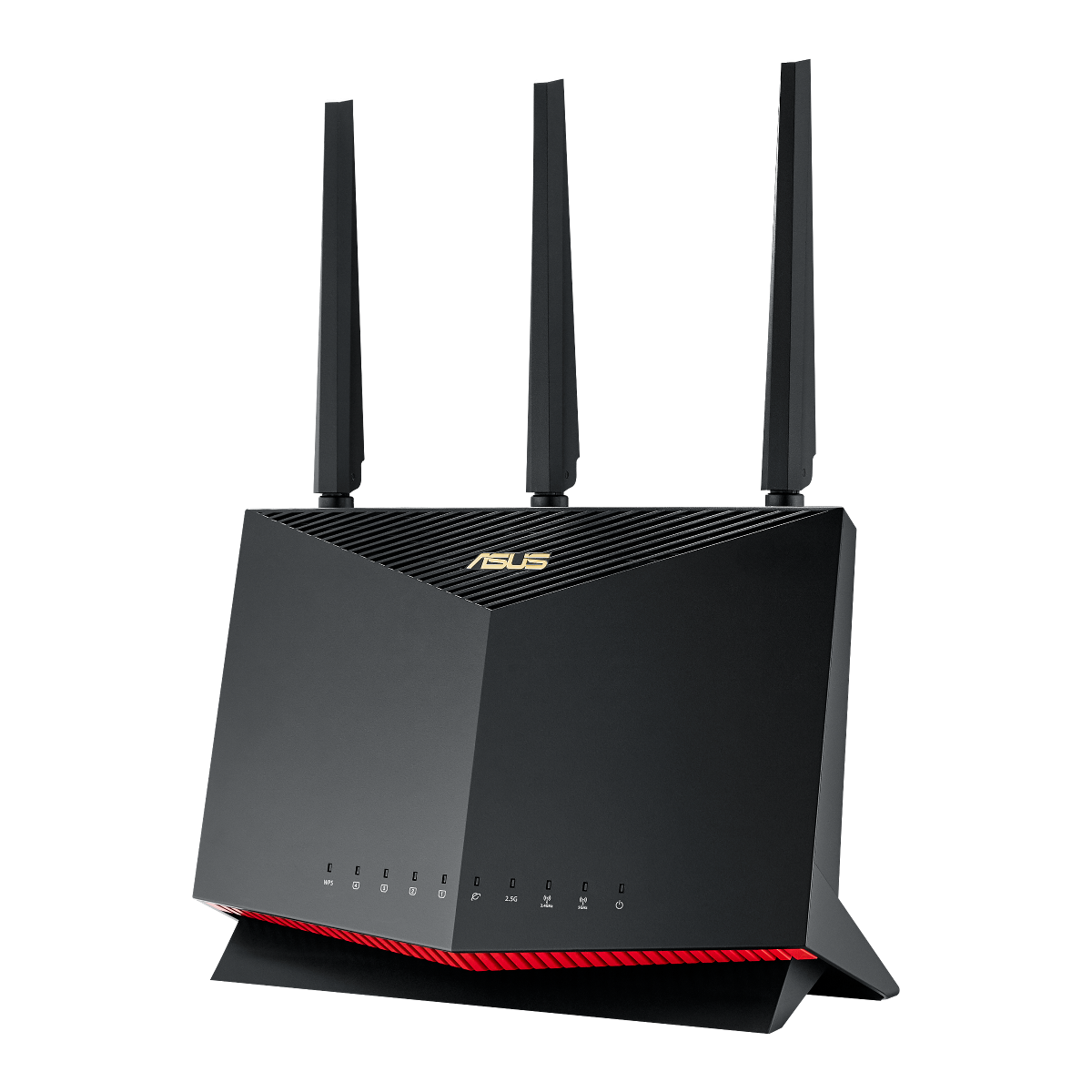

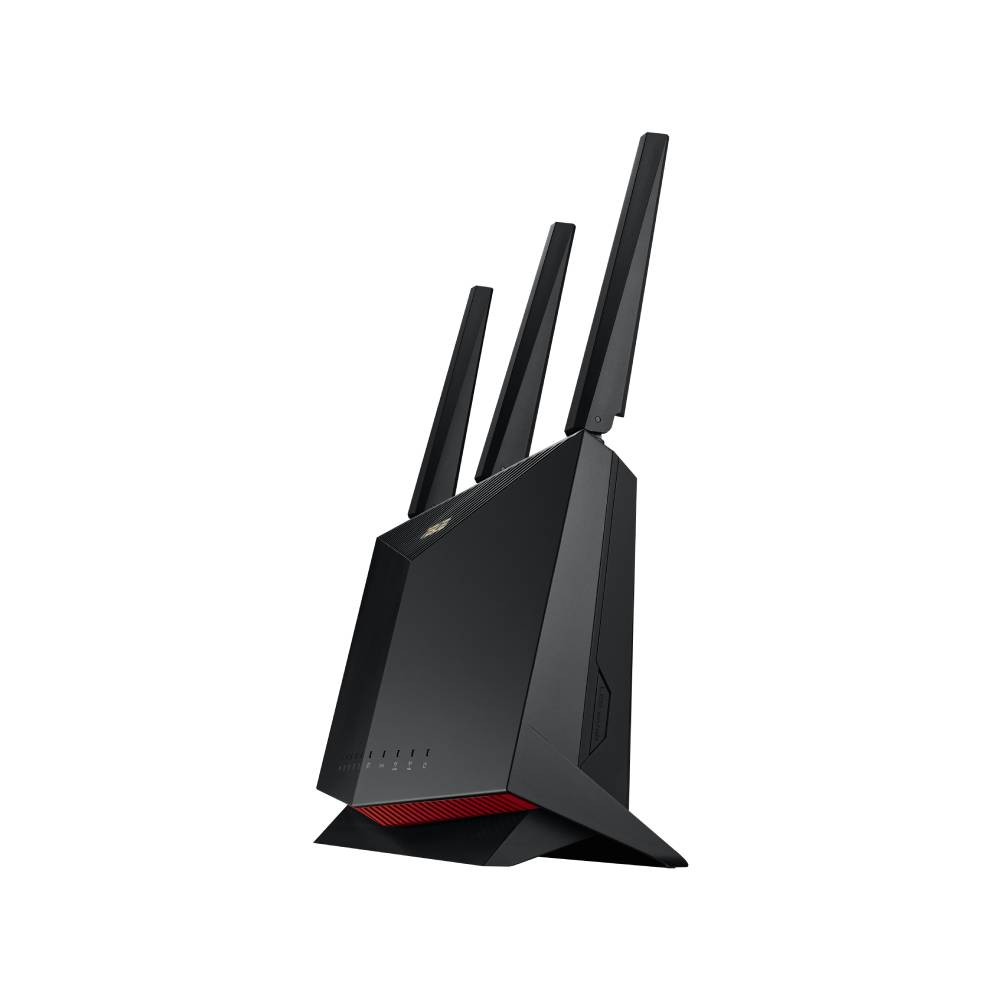

ASUS RT-AX86U Pro AX5700 Dual Band WiFi 6 Gaming Router
เพิ่มเมื่อ: 2023-07-27 16:37:39.0
แก้ไขล่าสุด: 2025-08-26 12:28:24.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comROUTER (เราเตอร์) ASUS RT-AX86U Pro AX5700 Dual Band WiFi 6 Gaming Router
ASUS RT-AX86U Pro
RT-AX86U Pro AX5700 Dual Band WiFi 6 Gaming Router
AX5700 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Upgraded Parental Controls, 2.5G Port, Gaming Port, Adaptive QoS, Port Forwarding
– Ultrafast WiFi 6 dual-band router boosts speed up to 5700 Mbps, with 160 MHz channels for better efficiency and throughput
– Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
– The exclusive ASUS RangeBoost Plus improves signal range and overall coverage
– Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.
– Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.
Network Standard :
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- IPv4
- IPv6
Product Segment :
- AX5700 ultimate AX performance : 861+4804 Mbps
AX technology :
- Yes
Data Rate :
- 802.11a : up to 54 Mbps
- 802.11b : up to 11 Mbps
- 802.11g : up to 54 Mbps
- WiFi 4 (802.11n) : up to 450 Mbps
- WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
- WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
- WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
- WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna :
- External antenna x 3
- Internal PCB antenna x 1
Transmit/Receive :
- 2.4GHz 3x3
- 5GHz 4x4
Processor :
- 2.0GHz quad-core processor
Memory :
- 256 MB Flash and 1 GB RAM
Boosts speed :
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 1024-QAM high data rate
- 20/40/80/160 MHz bandwidth
Operating Frequency - 2.4 GHz / 5 GHz
Ports :
- RJ45 for 10/100/1000 BaseT for WAN x 1
- RJ45 for 10/100/1000 BaseT for LAN x 4
- Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
- 2.5G/1Gbps multi-Gig port (configurable)
- LAN: 4xGbE (2x port aggregation LAN)
- WAN: 1 GbE
- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
- USB 3.2 Gen1 x1, 2.0 x1
Button :
- WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator :
- Power x 1
- 2.4GHz x 1
- 5GHz x 1
- 2.5G Port x 1
- WAN x 1
- LAN x 4
- WPS x 1
Power Supply :
- 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or
- 12 V with max.3 A current / 19.5 V with max. 2.31 A current
Package content :
- RT-AX86U Pro WiFi router
- RJ-45 cable
- Power adapter
- Quick Start Guide
- Warranty card
Product Weight (g) :
- 814.5 g
Mesh :
- AiMesh
- Primary AiMesh router
- AiMesh node
Router APP :
- ASUS Router APP
Game :
- Game Boost / Acceleration
Alexa :
- Support Alexa skill
AiProtection :
- AiProtection Pro
- AiProtection
- Malicious site blocking
- Two-Way IPS
- Infected Device Prevention and Blocking
Parental Control :
- Parental Control
- Parental Control Customized Internet schedule
- Maximum Parental Control profile : 64
- Maximum Parental Control content filter rule : 64
Traffic Control :
- Adaptive QoS
- Bandwidth Monitor
- Bandwidth limiter
- Maximum Bandwidth limiter rule : 32
- Traditional QoS
- Maximum Traditional QoS rule : 32
- Traffic Monitor
- Real-time traffic monitor
- Wired Traffic Monitor
- Wireless Traffic Monitor
- Traffic Analyzer
- Traffic analysis period : Daily, Weekly, Monthly
- Website history
Wireless :
- IPv6
- MU-MIMO
- Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
- UTF-8 SSID
- Guest Network
- Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
- Guest Network Connection time limit
- Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
- WPS
- WiFi MAC address filter
- Maximum MAC filters : 64
- Wireless scheduler
- Airtime fairness
- RADIUS Client
- Universal beamforming
- Explicit beamforming
WAN :
- Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
- Dual WAN
- WAN Aggregation
- 3G/4G LTE dongle
- Android tethering
- Port forwarding
- Maximum port forwarding rule : 64
- Port triggering
- Maximum port triggering rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
- Let's Encrypt
- Safe browsing
- DNS-over-TLS
LAN :
- DHCP Server
- IPTV
- LAN Link Aggregation
- Manually assign IP address
- Maximum manually assign IP address rule : 64
VPN :
- Instant Guard
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Client WireGuard
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
Administration :
- Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
- Operating system : ASUSWRT
- Free OS upgrade
- Firewall
- Maximum Firewall keyword filter : 64
- Maximum Firewall network service filter : 32
- Maximum Firewall URL filter : 64
- SSH
- Wake on LAN (WOL)
- Configuration backup and restore
- Diagnosis tools
- Feedback system
- System log
- New Device Connect Notification
- Login Captcha
- Connection Diagnosis
- Security Scan
- Auto Firmware Update
