| Managed Gigabit Switches
| TP-LINK SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots

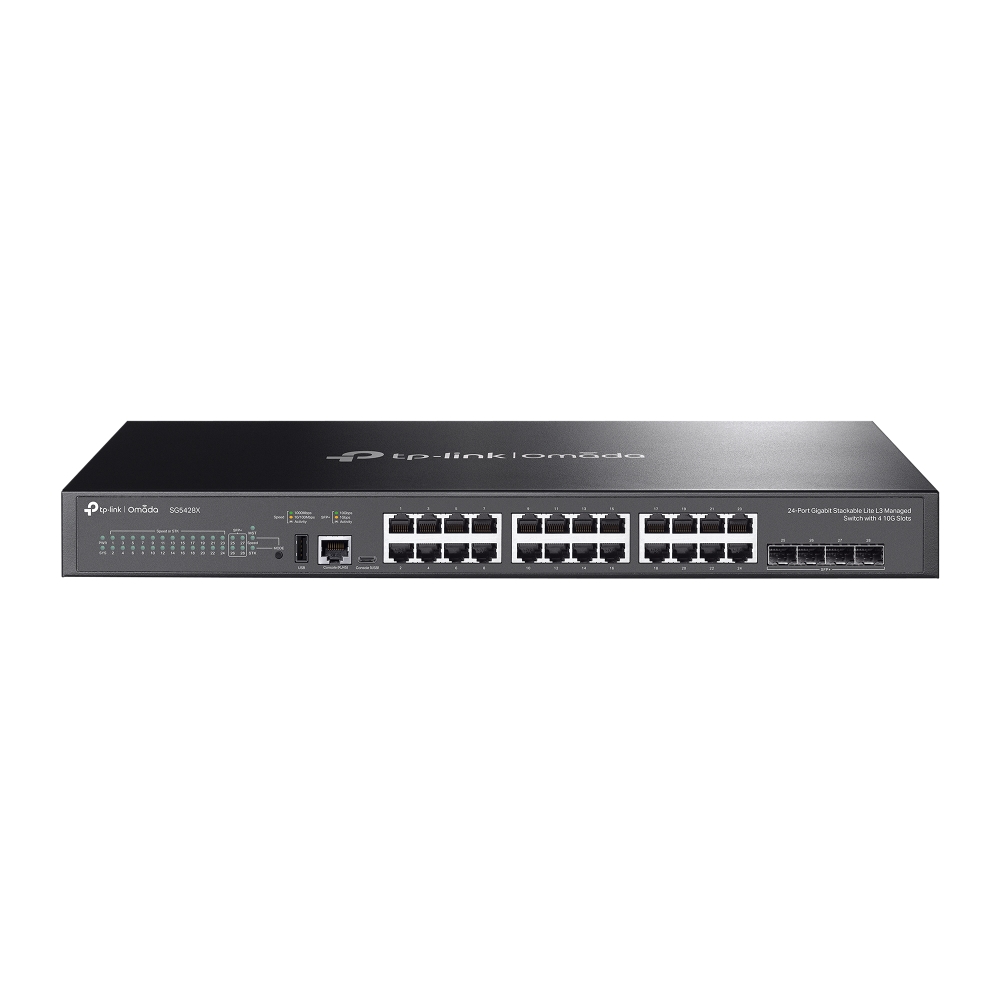

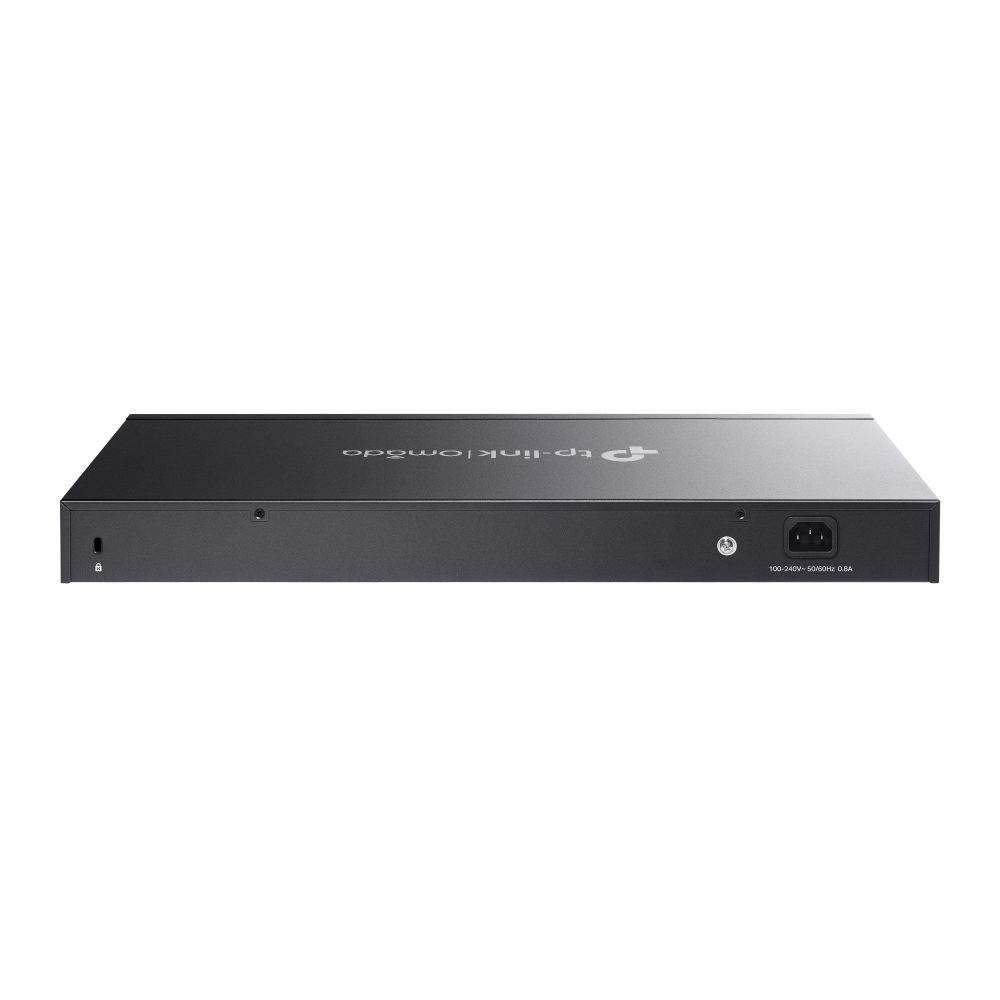

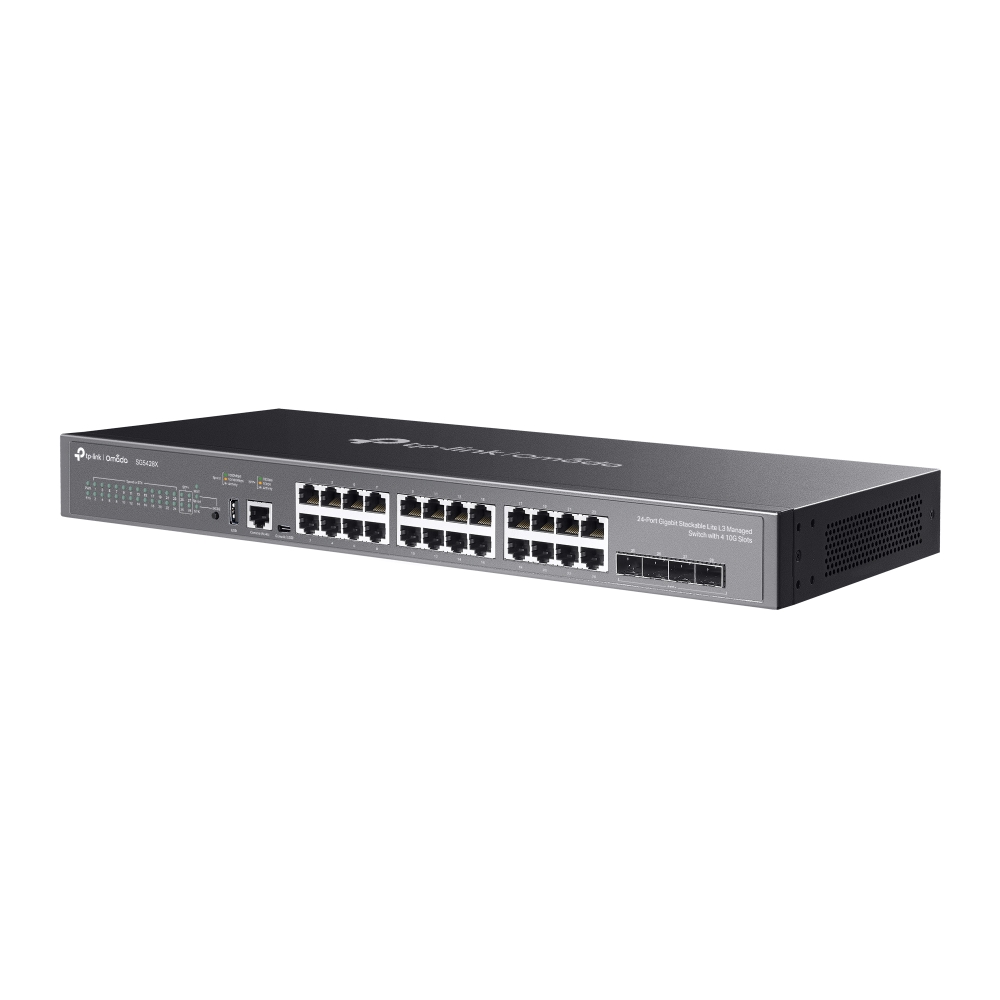

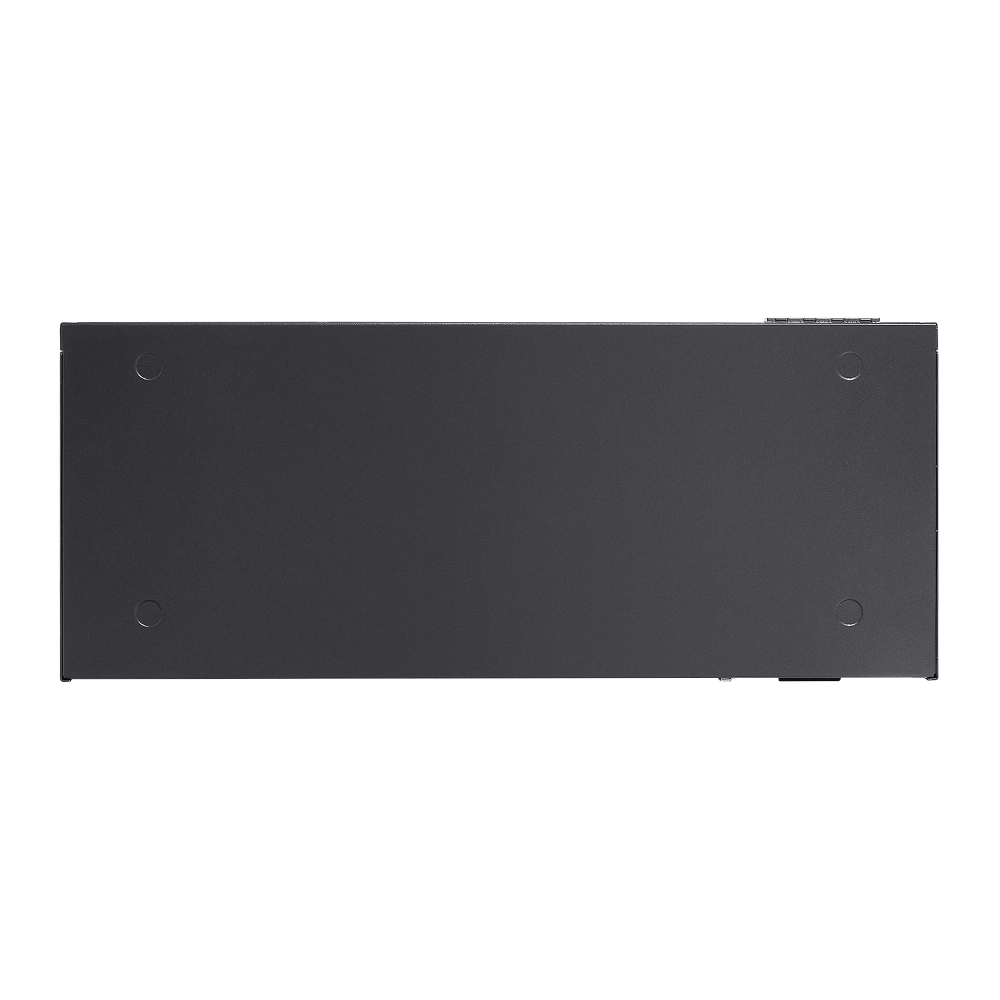

TP-LINK SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
เพิ่มเมื่อ: 2025-05-22 12:40:39.0
แก้ไขล่าสุด: 2025-05-22 12:50:33.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) TP-LINK SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
TP-LINK SG5428X
SWITCH (สวิตซ์) TP-LINK SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical Stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Interface :
• 24× 10/100/1000 Mbps RJ45 Ports
• 4× 1/10 Gbps SFP+ Slots
• 1× USB 2.0 Port
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
Fan Quantity : Fanless
Power Supply : 100-240 V~50/60 Hz
Dimensions ( W x D x H ) : 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting : Rackmountable
Max. Power Consumption : 19.90 W (110 V/60 Hz)
Max Heat Dissipation : 67.86 BTU/hr (110 V/60 Hz)
Switching Capacity : 128 Gbps per Unit
Stacking :
• Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 40 Gbps (4 stacking ports)
Packet Forwarding Rate : 95.23 Mpps
MAC Address Table : 16 K
Packet Buffer Memory : 12 Mbit
Jumbo Frame : 9 KB
Quality of Service :
• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features :
• IP Interfaces:
- IPv4: Max 128, IPv6: Max 128
• Static Routing
- IPv4 Max 512, IPv6: Max 128
• Host Route Table: Max 1,024 entries
• RIP: Version v1/v2, Max 1,796
• OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
• Static ARP: 512 static entries
• Dynamic ARP: 3,600 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 64 IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features :
• Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table: Max 2,000
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast Groups
- Multicast Filtering
Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN :
• Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 60
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• Voice VLAN
• Private VLAN
Omada App : Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management :
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access : Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning : Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features :
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• IEEE 802.3az Energy Efficient Ethernet (EEE)
Package Content :
• SG5428X Switch
• Power Cord
• Console Cable
• Rackmount Kit
• Rubber Feet
• Quick Installation Guide
System Requirements : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment :
• Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
